1000 μL L-type Double Channel Rp-42 Piston Pump

RUNZE Part Number: 1010040011

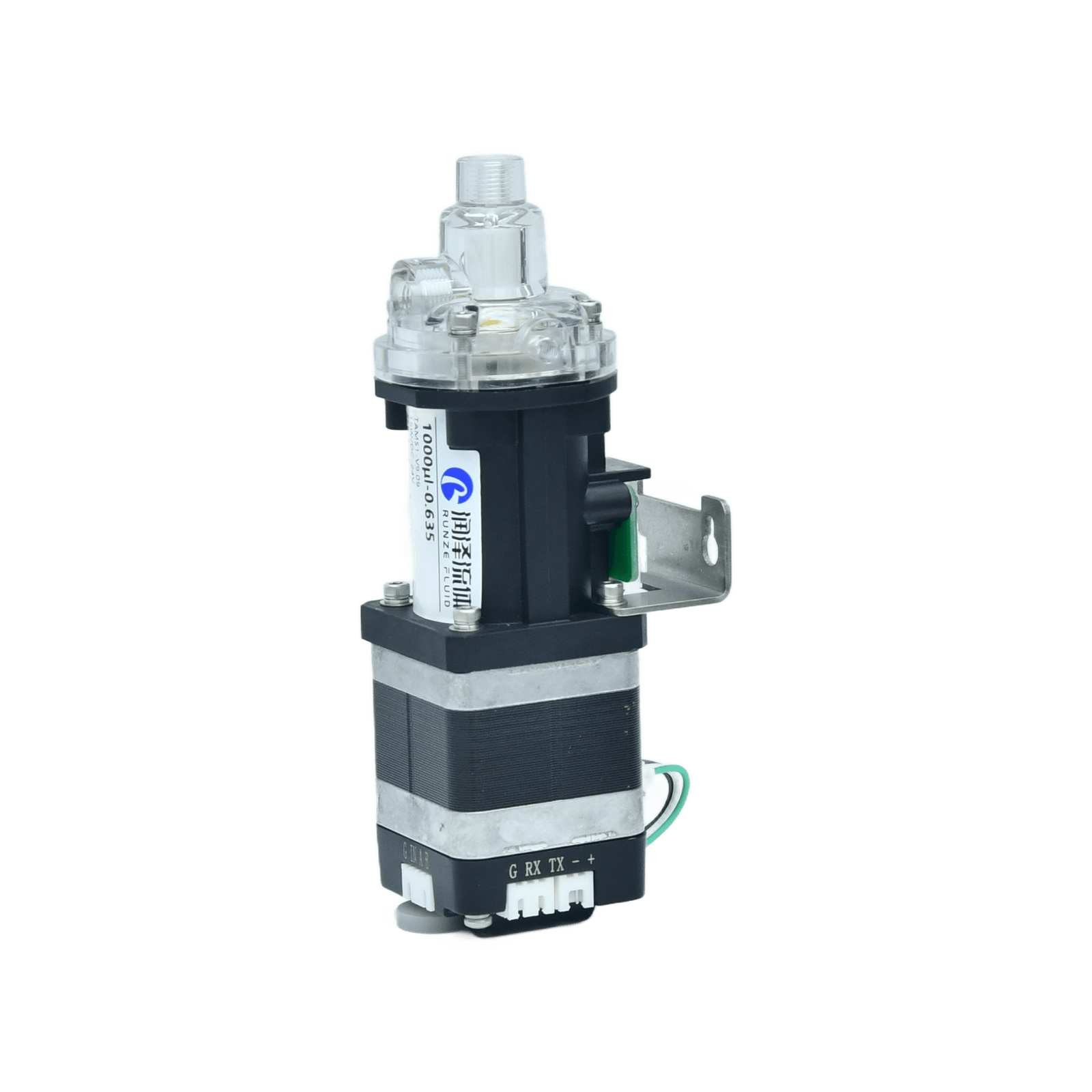

1000 μL L-type Double Channel Rp-42 Piston Pump

Micro industrial plunger pump with plunger cleaning ports; compact size, high precision, stable performance and long service life.

Looking for a CAD file for this product? Request a CAD now!

Looking to design this product into your instrument? Fill out this form for more information.

Part Number1010040011
AvailabilityRequest quote
267.58USD Each
US Domestic pricing - contact your local distributor for other currency list prices
Each
267.58 USD
Connect
Pump Volume1000 µL
Pump Fluidic Ports1/4-28UNF inlet/outlet; 10-32UNF cleaning port
Pump Wetted MaterialsPCTG, FKM, UPE, Ceramics
Model No.ZSB-RP42-LS-1.8-0.635-1000-2-Q
Pump Max Dispense Rate15
Accuracy<=1% at rated stroke
Resolution0.25 µL/full step
Rated Stroke / Control Steps12.7 mm / 4000 steps
Anticipated Life3 million cycles, no leakage (water; 1 rated stroke = 1 cycle)
SeriesRp-42
Actuator Lead0.635 mm
Back Pressure0.5 MPa
Configurationwith Drive Controller
Cylinder ID10.01 mm
Head TypeL-type Double Channel
Maximum Speed300 rpm
Product Data Statusmanual_verified
Quantity1 Piece
Source Catalog Pages13, 14
Source ManualRunze Pump & Valve Selection Guide V9.75
Source PDF Pages8
