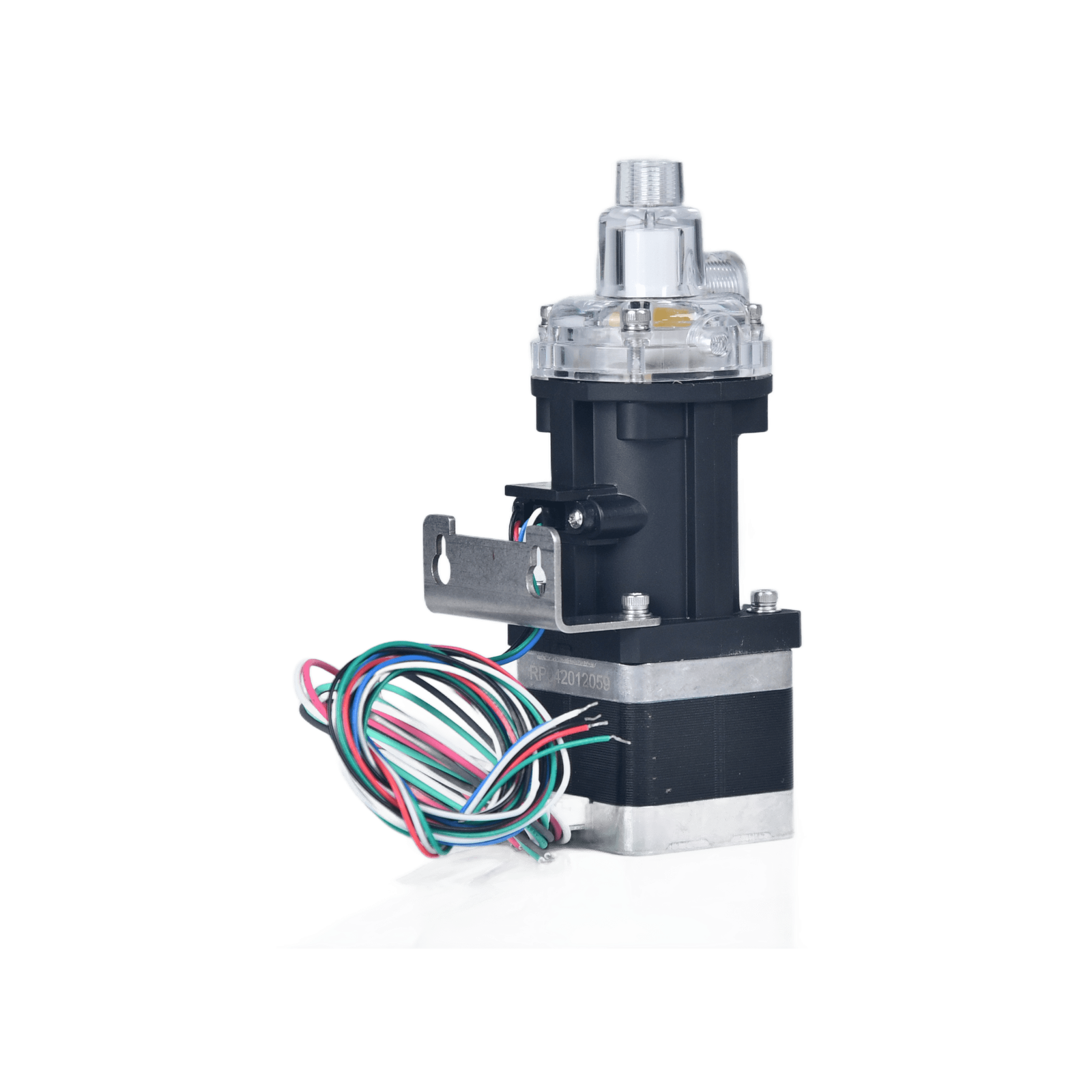

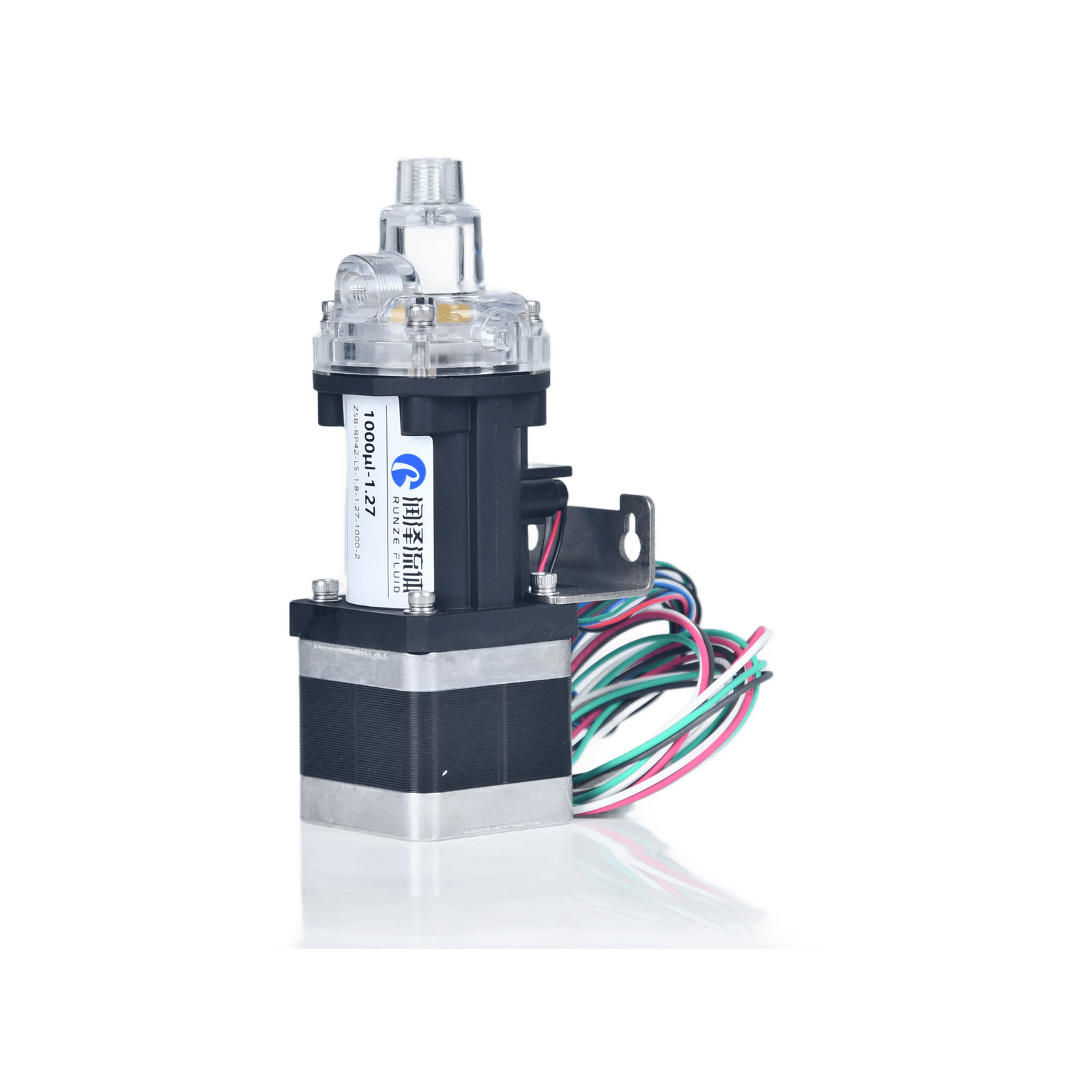

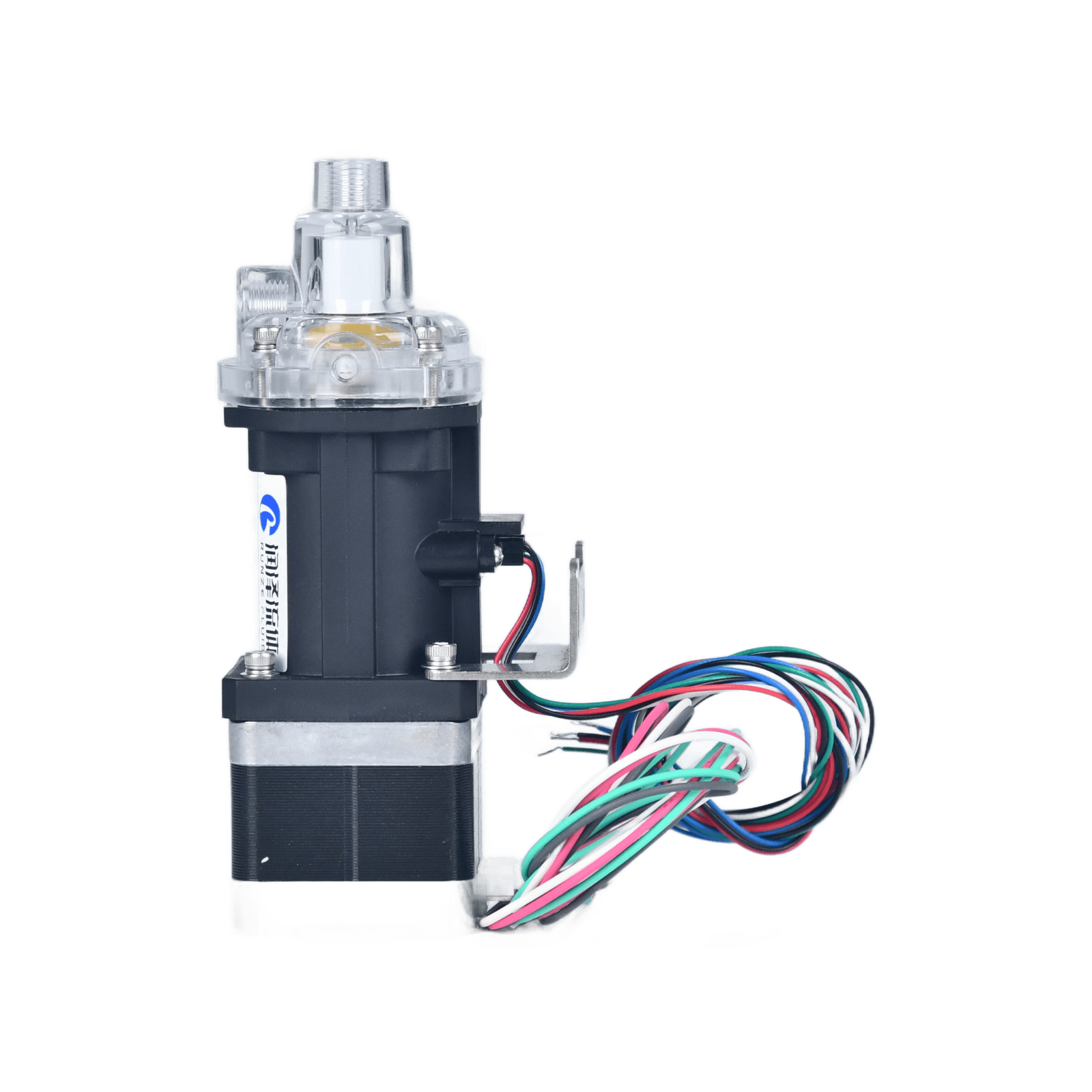

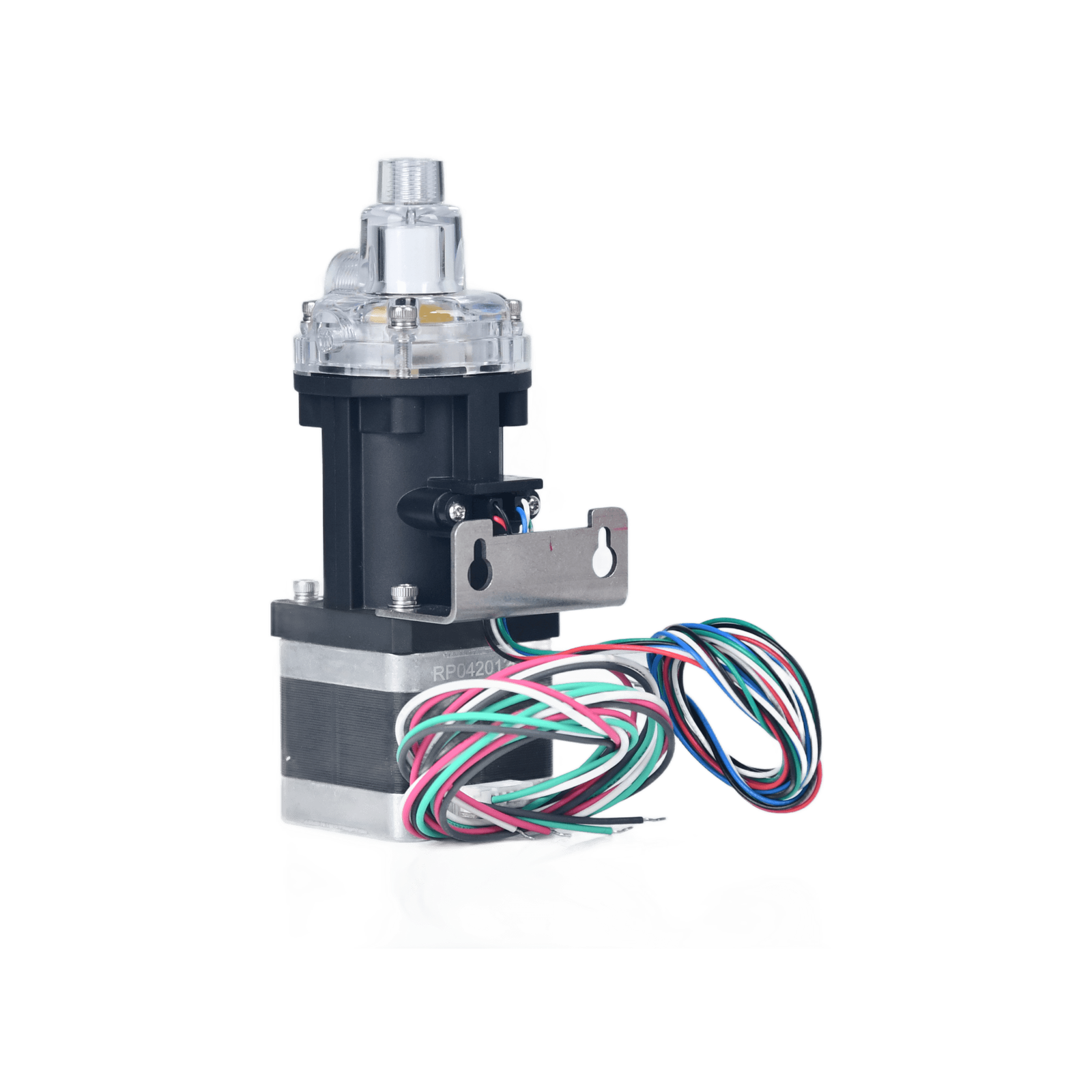

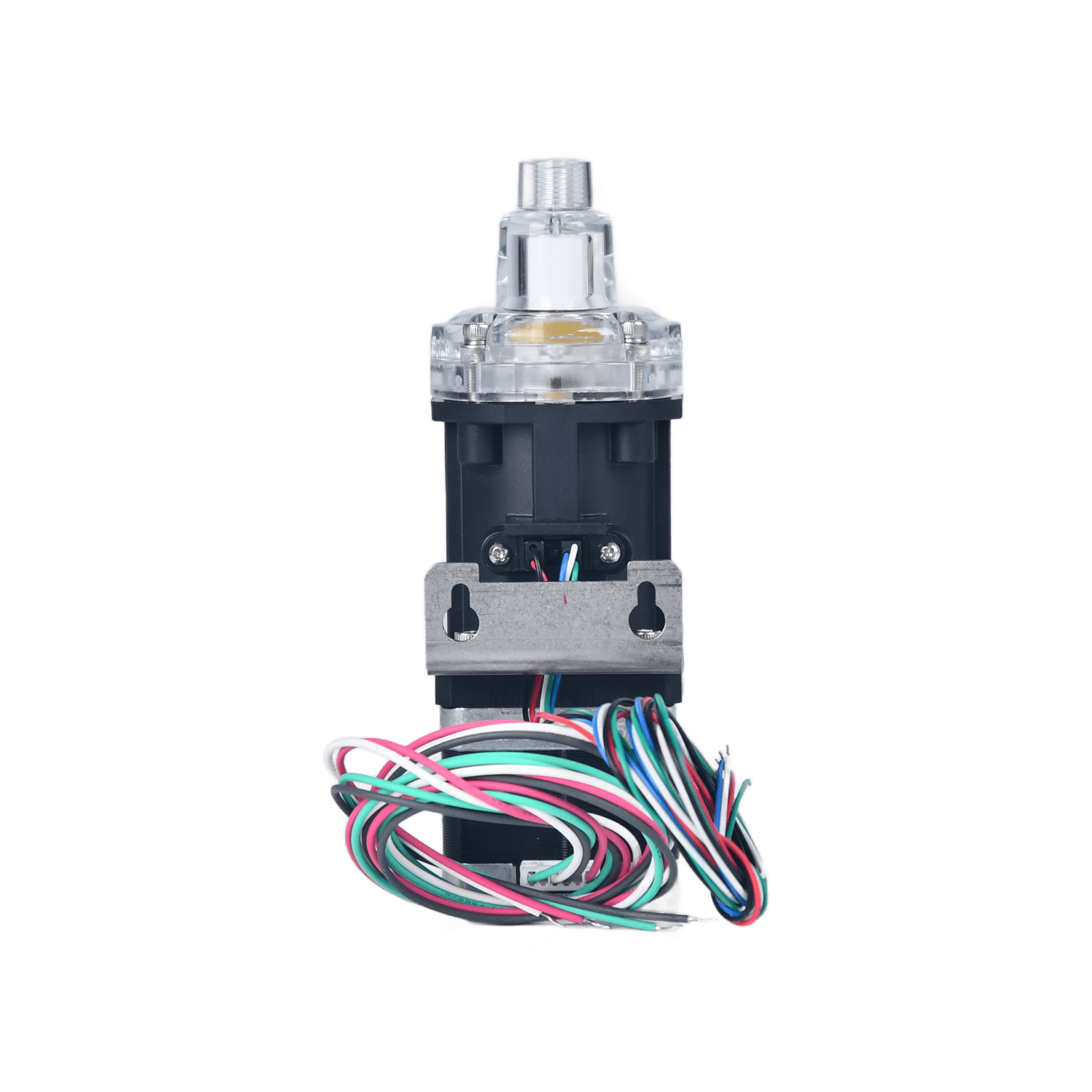

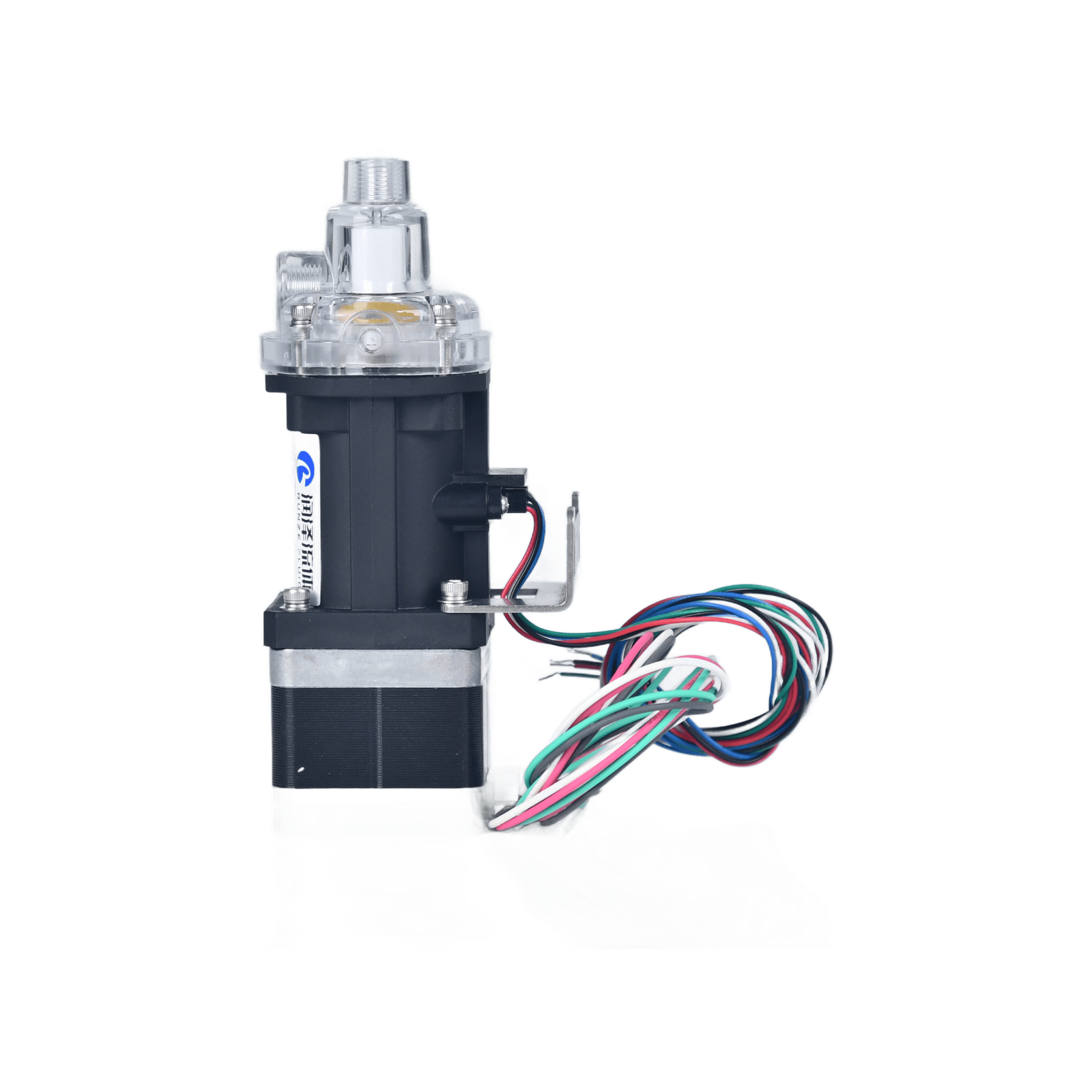

1000 μL L-type Double Channel Rp-42 Piston Pump

RUNZE Part Number: 1010040006
1000 μL L-type Double Channel Rp-42 Piston Pump

Micro industrial plunger pump with plunger cleaning ports; compact size, high precision, stable performance and long service life.

Looking for a CAD file for this product? Request a CAD now!

Looking to design this product into your instrument? Fill out this form for more information.

Part Number1010040006
AvailabilityAvailable to order
225.33USD Each
US Domestic pricing - contact your local distributor for other currency list prices
Each
225.33 USD
Connect
Pump Volume1000 µL
Volume1000 µL
Pump Fluidic Ports1/4-28UNF inlet/outlet; 10-32UNF cleaning port
Pump Wetted MaterialsPCTG, FKM, UPE, Ceramics
Recommended Max Pump Operating PressurePositive air pressure 0-0.5 MPa; negative air pressure 0-0.06 MPa
Model No.ZSB-RP42-LS-1.8-1.27-1000-2
Pump Max Dispense Rate30
Accuracy<=1% at rated stroke
Resolution0.5 µL/full step
Pump Resolution0.5 µL/full step
Rated Stroke / Control Steps12.7 mm / 2000 steps
Service Life3 million times no leakage (media: water; 1 rated stroke = one time)
Anticipated Life3 million cycles, no leakage (water; 1 rated stroke = 1 cycle)
SeriesRp-42
Actuator Lead1.27 mm
Back Pressure0.5 MPa
Configurationwithout Drive, OPB Optical Sensor
Cylinder ID10.01 mm
Head TypeL-type Double Channel
Initial Position DetectionPhotoelectric detects original piston position
Linear Speed0.02-6.35mm/s
Maximum Speed300 rpm
Operating Humidity<80%
Operating Temperature5C-55C
Product Data Statusmanual_verified
Quantity1 Piece
Running Time Per Rated Stroke2s (300rpm)-600s (1rpm)
Source Catalog Pages13, 14
Source ManualRunze Pump & Valve Selection Guide V9.75
Source PDF Pages8
Source SheetSyringe Pump
Valve HeadL-type Double Channel
